Corrosion resistant coating material

UHMWPE

Product Introduction

Plastic alloy steel wire mesh anticorrosive bridge is applicable to power cable, control cable and lighting wiring, indoor and outdoor overhead cable crossing, tunnel laying.
The cable bridge can also accommodate any structural installation and can be used in the electrical equipment cable wiring of industrial enterprises. It can be installed with the engineering pipeline, the floor, under the beam, the interior wall, the column wall, the tunnel, the wall of the cable trench. It can also be used for the installation of open pillar.
The cable bridge can be used in the horizontal and vertical direction to conduct multi-level rotation angle, adjust height, adjust width, change diameter, and use all kinds of elbow, all kinds of connecting plates for any direction of branch laying.

Product Superior

Cable bridge
Cable bridge is composed of a tray, a straight line segment, a bend, components and support frame, which is the full name of the structural system that protects and supports the cable. ( Hereinafter refers to cable bridge).

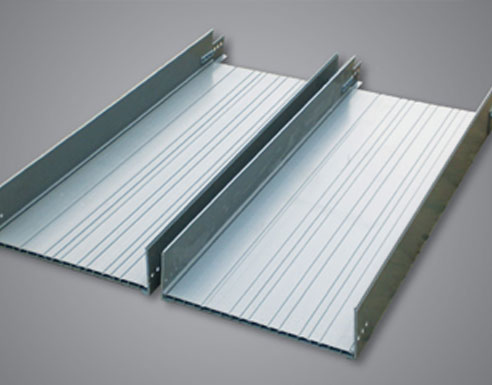

Cable tray
A grooved part consisting of a floor and a side board.
Ladder
A trapezoid part consisting of a side and a number of transverse gears.
Horizontal elbow
The part that changes pallet and ladder direction in the same horizontal plane.
Horizontal three-way
The part that connects the trays and ladder parts in three different directions at the same level.
Horizontal four-way
The part that connects the trays and ladder parts in four different directions at the same level.
Vertical upper bend-way cable tray
The part that changes the direction of the tray and ladder from the horizontal plane.
Vertical down bend-way cable tray
The part that changes the direction of the tray and ladder from the horizontal plane.
Fupport post
The part that can directly support trays, ladder bearing.
Rated uniformly distributed load
The maximum uniformly distributed load that the product can be allowed to apply during normal use.
Accessory
System components used to complete auxiliary functions, such as cable isolation, cable fixing and cover.
Span
The distance between two adjacent brackets (Over 3m is the big span).
Cable tray
The main parts used for laying cable in cable bridge are made up of channel and cover.

Product Performance

Corrosion resistant coating materialApplication of Polyethylene

(6)Application Examples
